FRP Grate Options

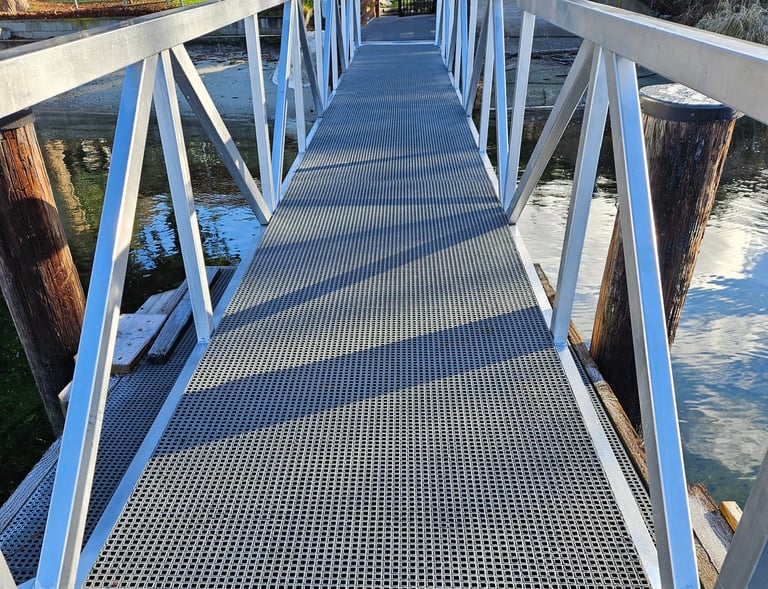

Fiber Reinforced Polymer (FRP), is a composite material that consists of a polymer matrix reinforced with fibers. FRP fiberglass manufacturing technology plays a crucial role in creating durable, corrosion-resistant, and light weight products suitable for various applications, including marinas.
Enhance Safety with BC Grates: Durable Composite FRP Solutions
Standard Mesh Patterns
Standard panel sizes:
1220mm x 3048mm ( 4’ x 10’ )
1220mm x 3660mm ( 4’ x 12’ )
1524mm x 3048mm ( 5’ x 10’ )
1524mm x 3660mm ( 5’ x 12’ )
Weight of standard panel: 25mm depth = (12.5kg/m2)

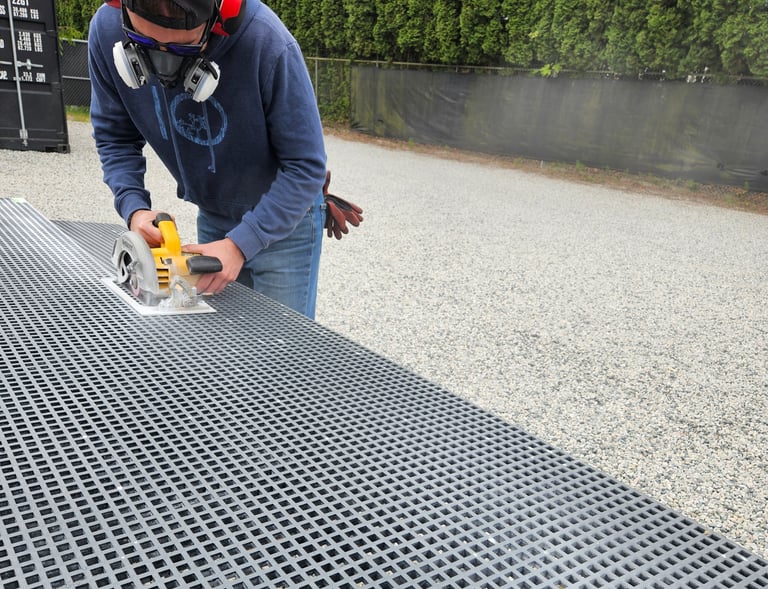

Custom Sizes Available Upon Request - Contact us for further information and to discuss your project needs.

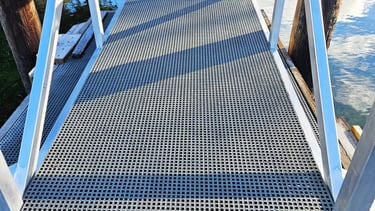

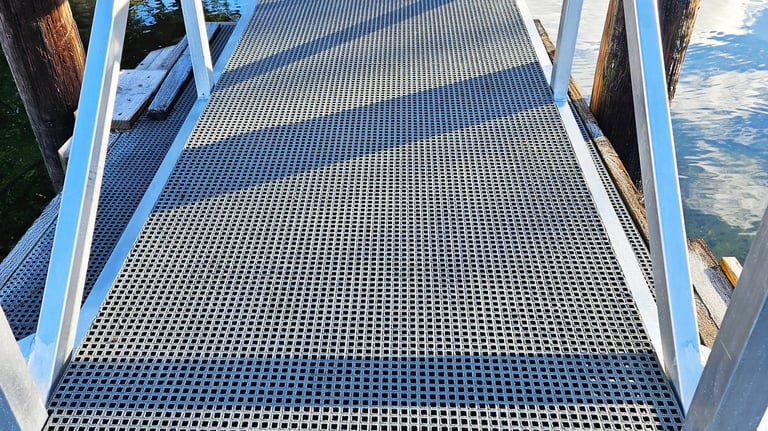

Light Penetration
Meeting the needs of current legislation, BC Grates offer mesh designs with an open light percentage of up to 70%.

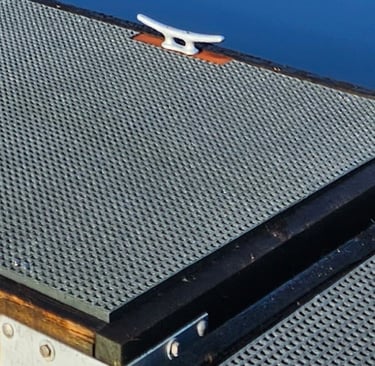

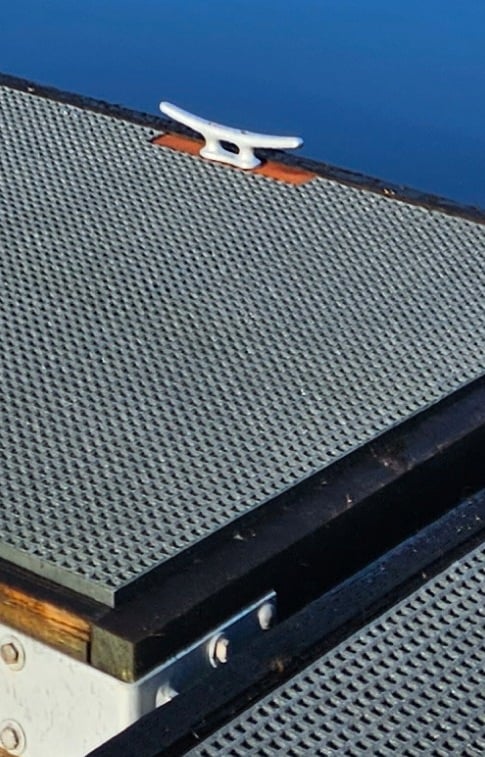

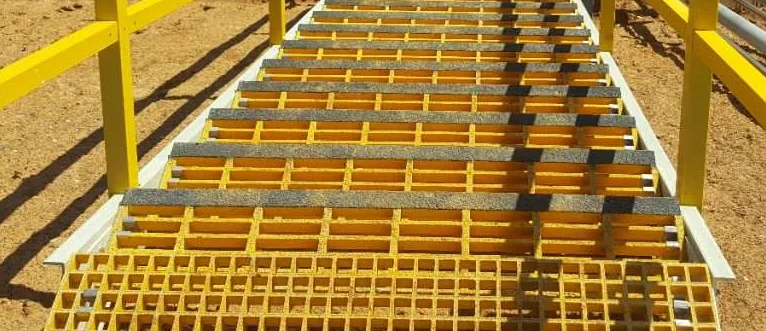

Mesh Specifications : Gritted Non-Slip Surface

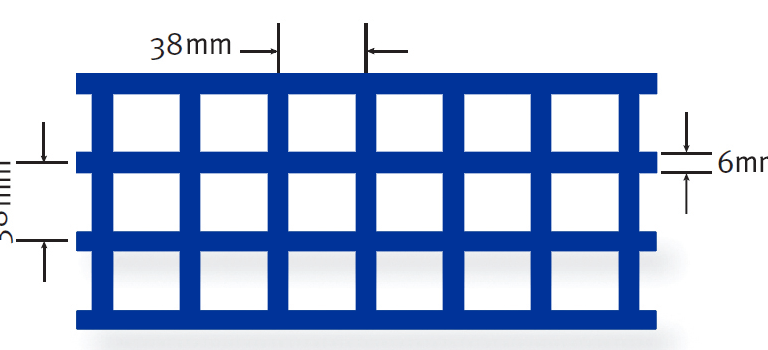

Integral, one piece moulded construction distributes load evenly to bi-directional bearing bars. One mesh pattern: 38 x 38 square mesh 68% open area 6.5mm and 5mm thick load bearing bars.
M Clips Stainless Steel 316
Easy to install grate systems with our Stainless Steel M Clips.
Fast Installation
Mclips can be used with screws or bolts depending on the application and structure. Easy to retro fit onto existing docks.
